Sensor location
Circuit Board Front/Back
Sensor Location
Sensor from Amazon: http://www.amazon.com/Spal-185-TS-Degree-Stainless-Thermostat/dp/B003PB9KQG
Sensor Specs: https://webstore.spalusa.com/content/files/content/PDF/185-TS_SPEC.pdf

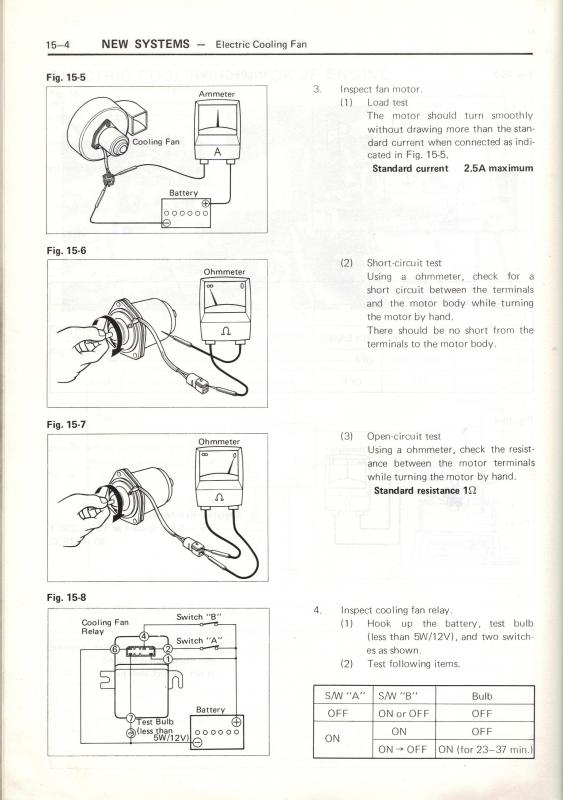

Measured the carb cooling fan current draw. For a few 100 milliseconds it draws 3.2 amps, then drops down to a safe 1.2 amps continuous.
Timer Module from Waytek Wire: http://www.waytekwire.com/item/85540/Solid-State-One-Shot-Timer/
Using the module from Waytek Wire: http://forum.ih8mud.com/threads/carb-cooling-fan-wiring-help.813906/
