( Please Note: Terminals may be solid
brass, or tin plated brass, depending on my supplier!!! If you prefer
one over the other PLEASE specify this when ordering!!!)
** Click small pictures to see LARGE pictures!!
3.9mm Bullet Terminals/Receptacles
Part# MT3.9 [Qty.
1 $.25] Male 3.9mm Single Bullet terminal with clear insulator.
(Used in harness for Turn Signal Switch wiring, under dash, all
park, brake, reverse, and license lights.)

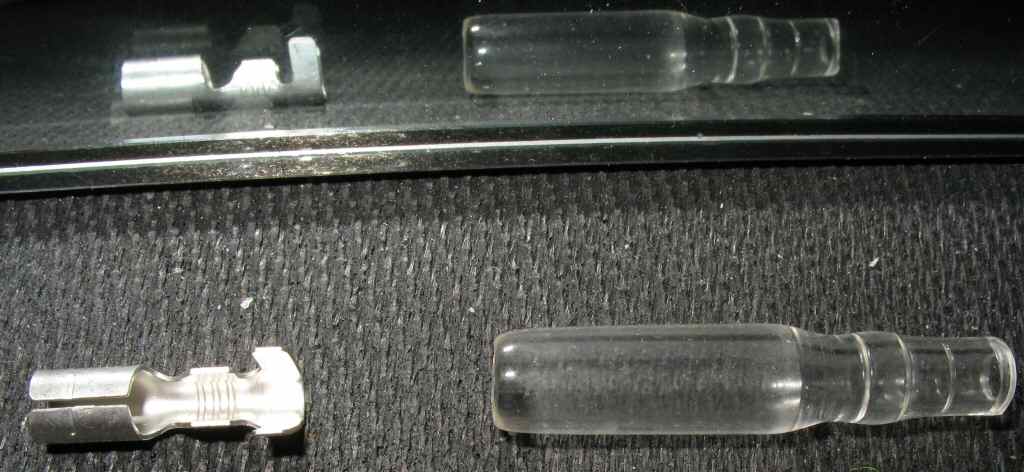

Part# FT3.9 [Qty.
1$.25] Female 3.9mm Single Bullet Terminal with clear insulator.
(Used in harness to Turn Signal Switch wiring, under dash, all park,
brake, reverse, and license lights.)

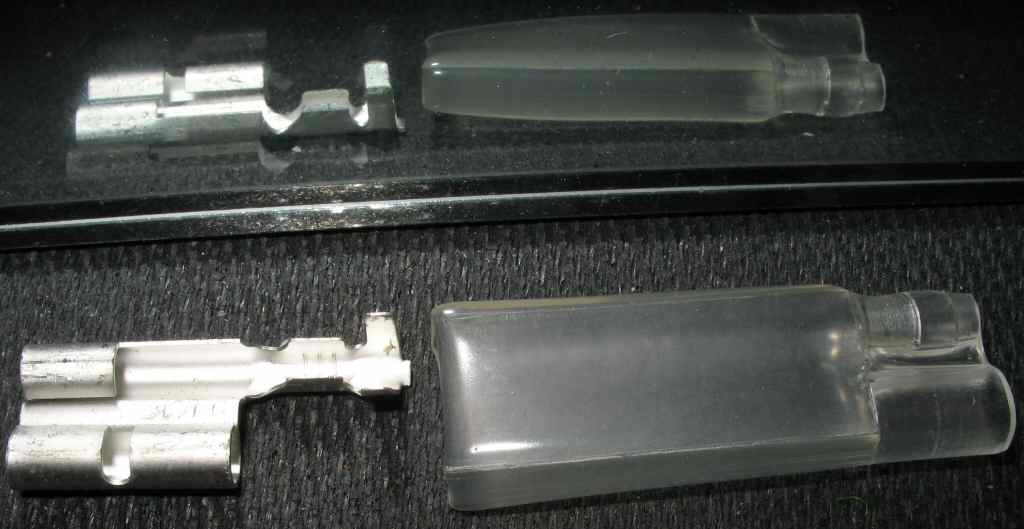

Part# FTDB3.9 Qty.
1 $.65 Female 3.9mm DOUBLE Bullet terminal (Used in rear
harness for park lights. With clear insulator. Using one of these
in place of a single bullet connector is an easy way to "tap
into" a circuit.
Part# FTTP3.9 Qty.
1 $1.60 Female 3.9mm TRIPLE Bullet
terminal with clear insulator. (Used for under dash turn signals
indicator lights ) Used in rear harness of some older FJ40's.
6.3mm Terminals
These are the terminals for ALL the housings below
EXCEPT for F1P6.3. ** Remember connectors come with terminals! **
Part# MT6.3 Qty.
1 $.25 Male 6.3mm terminals
Part# FT6.3 Qty.
1 $.25 Female
6.3mm Terminals
6.3mm Non-Latching Housings
Part# F1P6.3B Qty.
1 $1.50 each Female 1pin connector. GRAY (with slot) Used
on Oil/Water Sending Units, Brake Pressure Switches, and EARLY Horns.
Comes with 1 (Part# F1T6.3) special terminal.
 Part#
F1P6.3W Qty. 1 $1.80 Female
1pin connector. White (WITHOUT slot) Used on gas tank sending unit
and LATER model horns. Also used on the 2F Temp sending units and
later starter connector wires.. Comes with 1 (Part# F1T6.3) special
terminal.

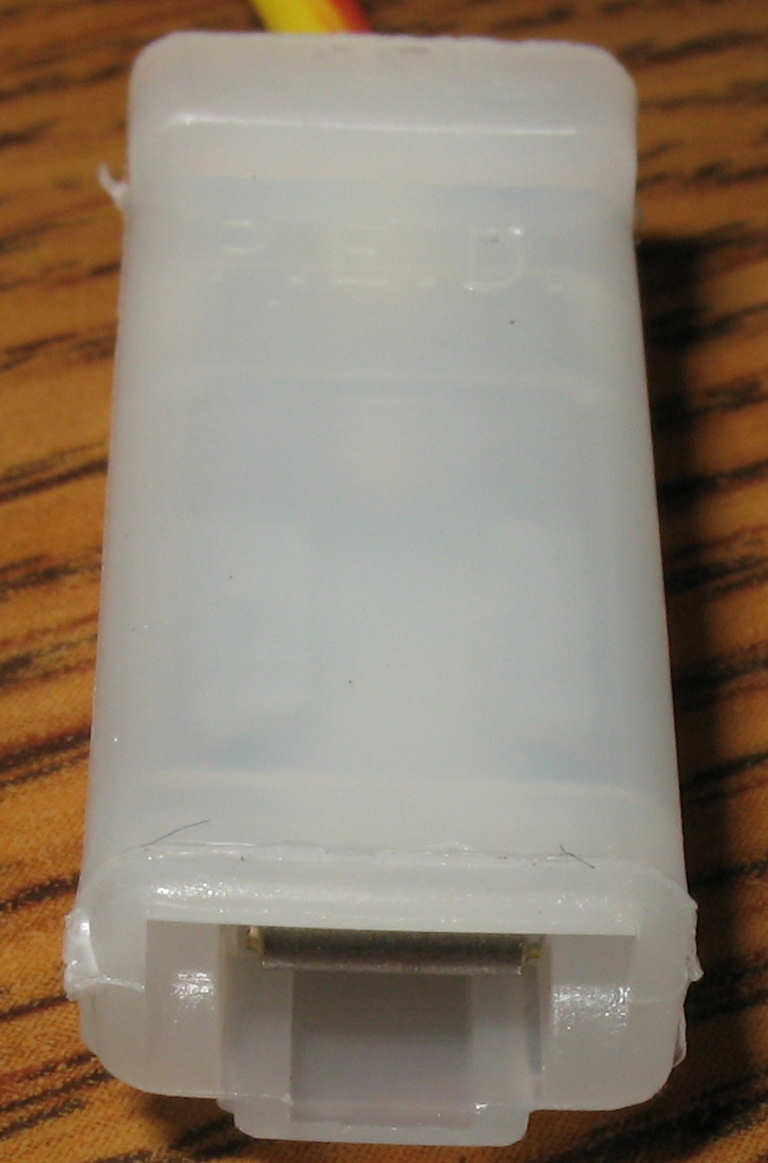

 Part#
M1P6.3W Qty. 1 $1.50 Male
1pin connector. White. Mates to Part# F1P6.3W. Comes with 1 male
6.3mm terminal.

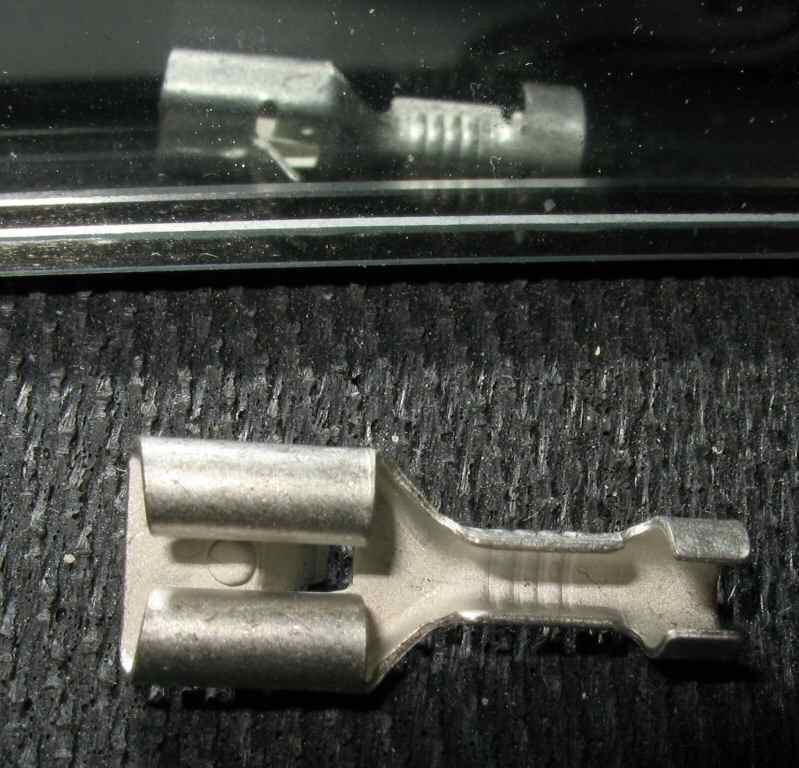

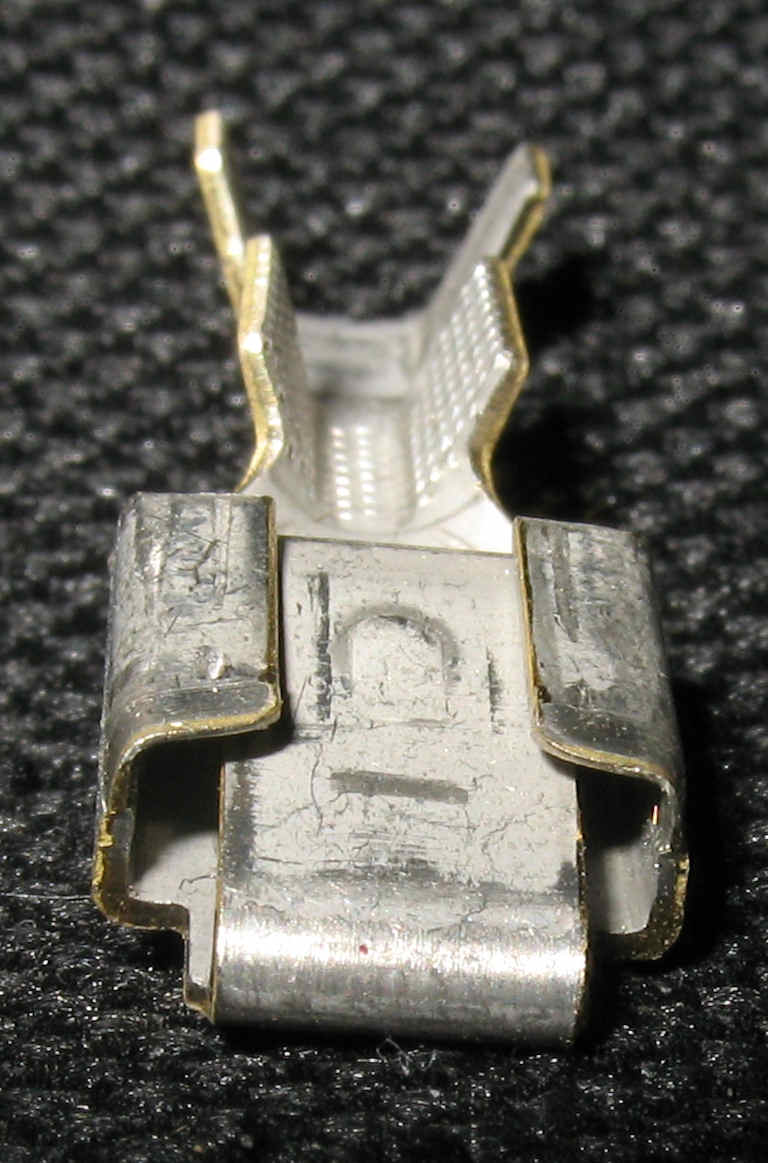

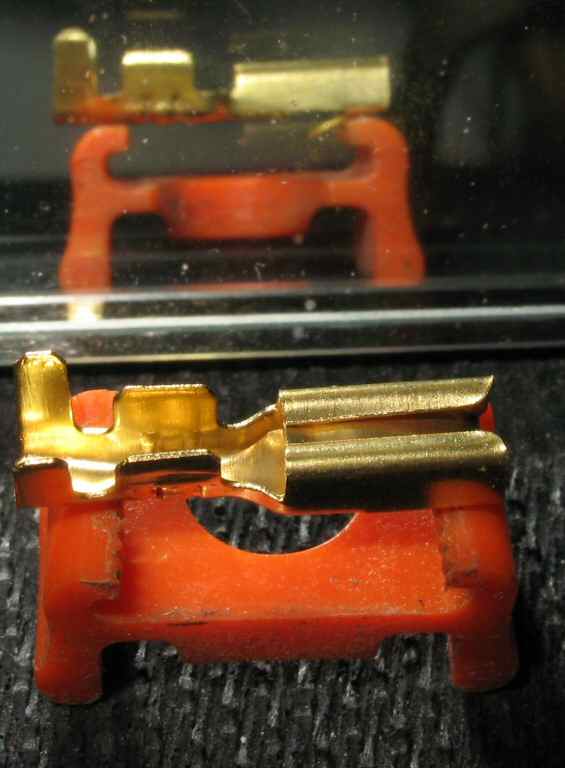

Part# F1T6.3 Qty.
1 $0.35 Female 6.3mm
Terminals for either of the F1P6.3 housings above.
Part# F2P6.3
Qty. 1 $1.95 Female 2 pin non-latching connector. Used
on VSV and Turn signal flasher. Comes with 2 female 6.3mm terminals.

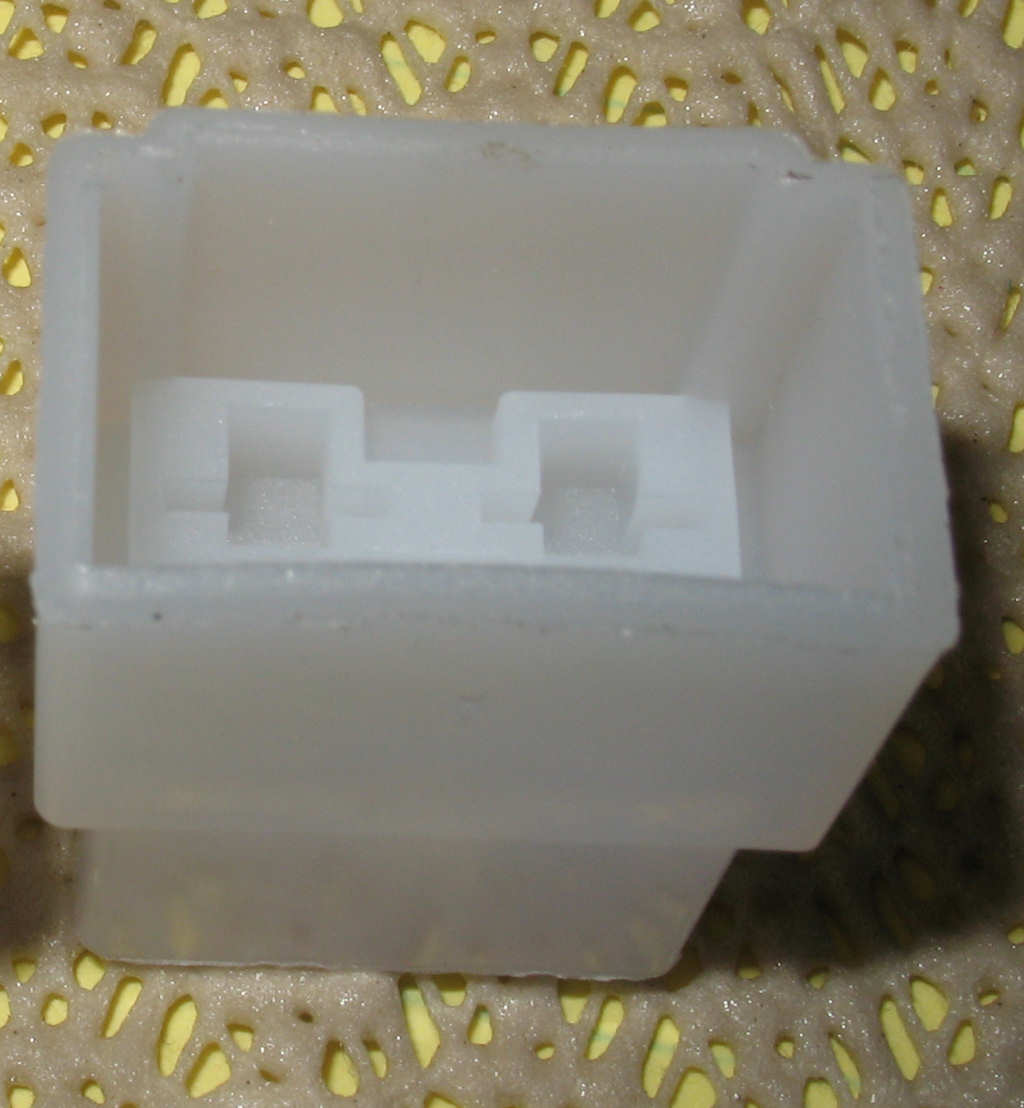

Part# M2P6.3
Qty. 1.00 $ Male 2 pin non-latching connector. Mates with
Part# F2P6.3. Comes with 2 male 6.3mm terminals.
Note: These two three pin connectors are interchangable,
but Part #F3P6.3E has the ears on it.

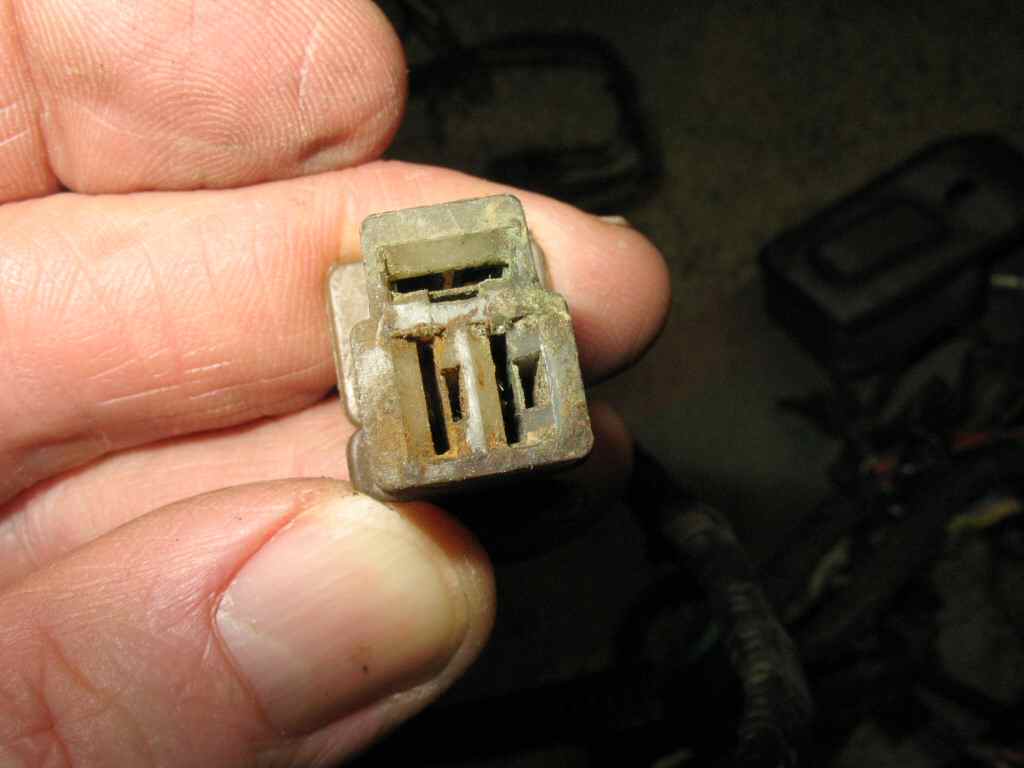

Part# F3P6.3E Qty.
1 $3.25 Female non-latching 3 pin connector. Used for Horn
Relay. Comes with 3 female 6.3mm terminals.
Part# F3P6.3 Qty.
1 $2.85 Female non-latching 3 pin connector. Used for Horn
Relay. Comes with 3 female 6.3mm terminals.
Part# M3P6.3 Qty.
1 $1.85 Male non-latching 3 pin connector. Mates with Part#
F3P6.3E or Part# F3P6.3. Comes with 3 male 6.3mm terminals.

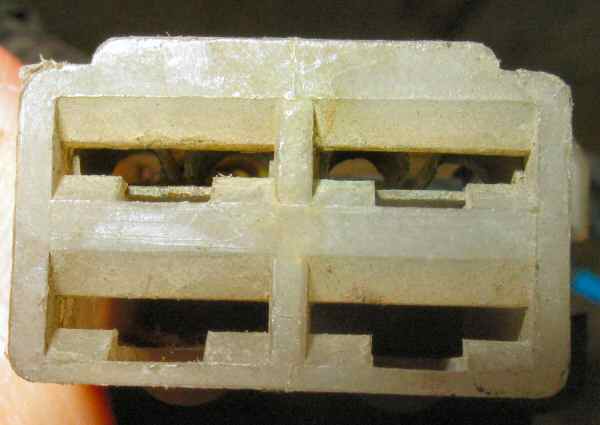

Part# F4P6.3
Qty. 1 $3.25 Female 4 pin connector.
Used on Wipers, Brake Switch, Rear Harness plugs. Comes with 4 female
6.3mm terminals.
Part# M4P6.3 Qty.
1 $2.00 Male 4 Pin connector. Used for rear harness connectors.
Comes with 4 male 6.3mm terminals.

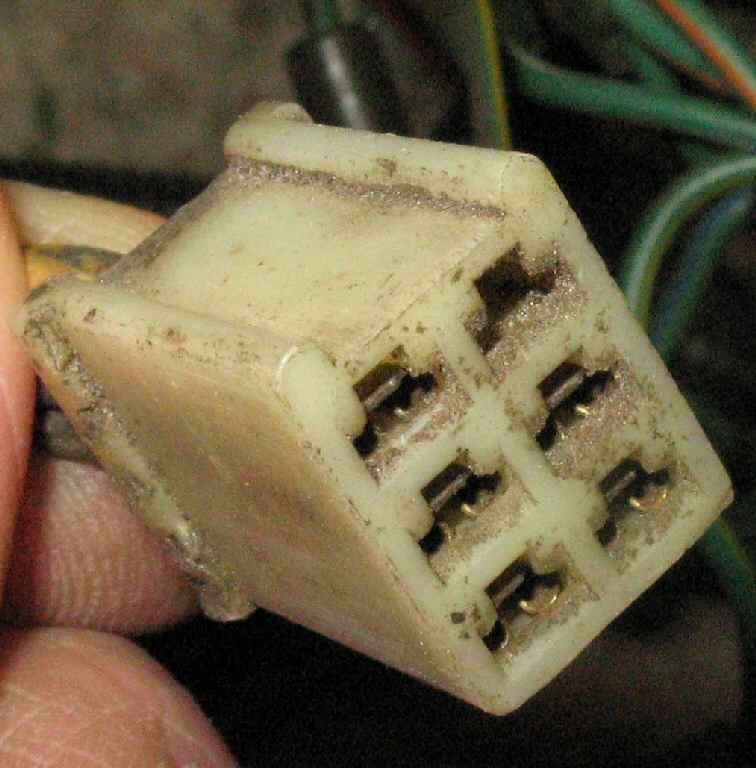

Part# F6P6.3 Qty.
1 $3.75 Female 6 pin connector. Used on Key Switch, Wiper
Switch., Head Light Switch. Comes with 6 female 6.3mm terminals.

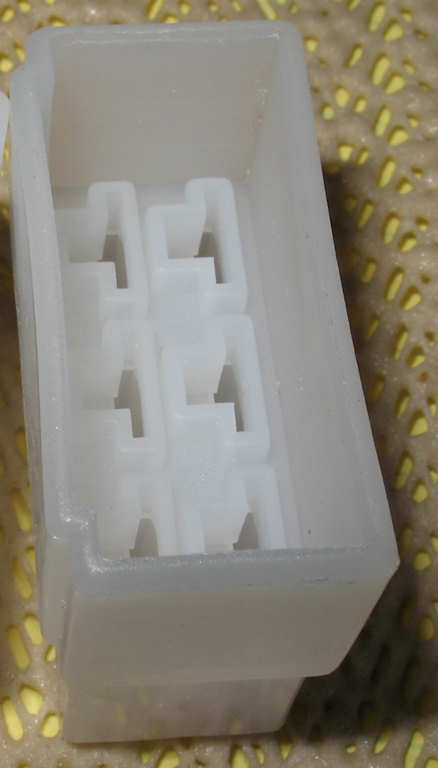

Part# M6P6.3 Qty.
1 $2.75 Male 6 pin connector. Used on later 76-83 model
harnesses. Comes with 6 male 6.3mm terminals.
2.8mm Terminals
Part# MT2.8
Qty. 1 $.20 Male 2.8mm terminals (Used on Emissions computer
and Hazard Switch plugs)
Part# FT2.8 Qty.
1 $.21 Female 2.8mm Terminals (Used on Emissions computer
and Hazard Switch plugs)
2.8mm Non-Latching Housings

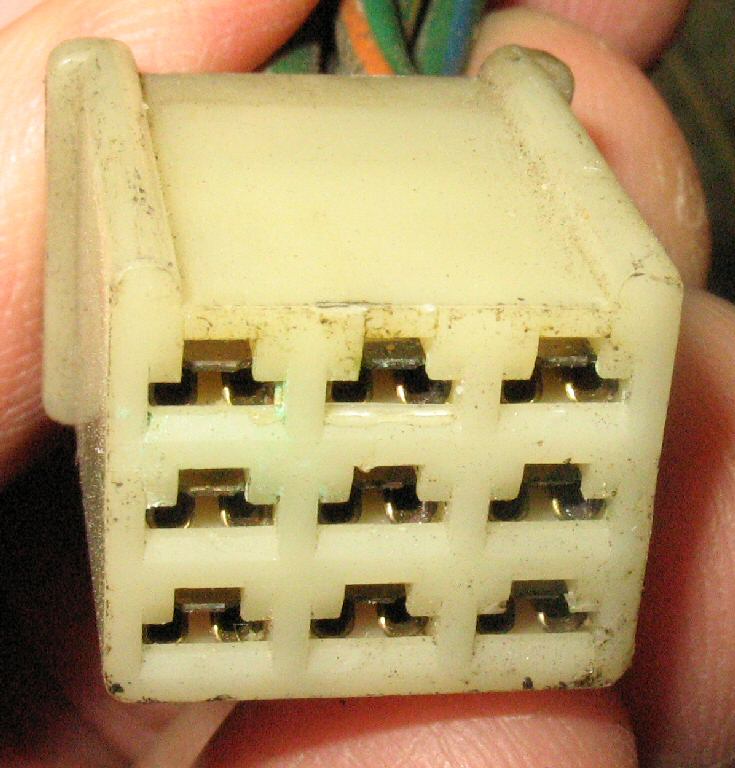

Part # F9P2.8 Qty.
1 $4.00This is the Hazard Switch receptacle on the harness.
Comes with 9 female 2.8mm terminals.

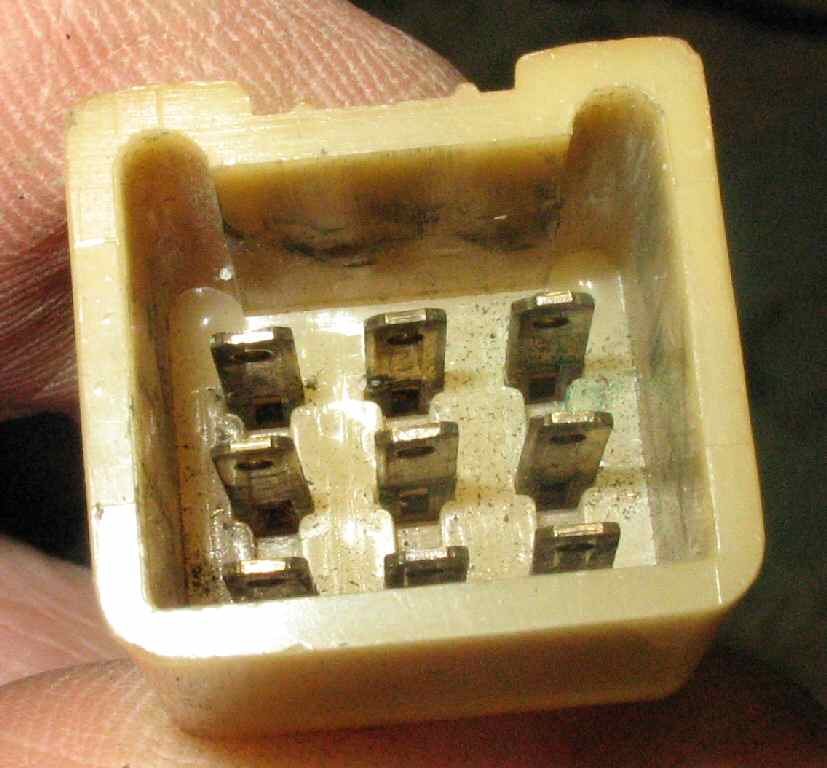

Part # M9P2.8 Qty.
1 $3.75 This is the Hazard Switch plug. Comes with 9 male
2.8mm terminals.

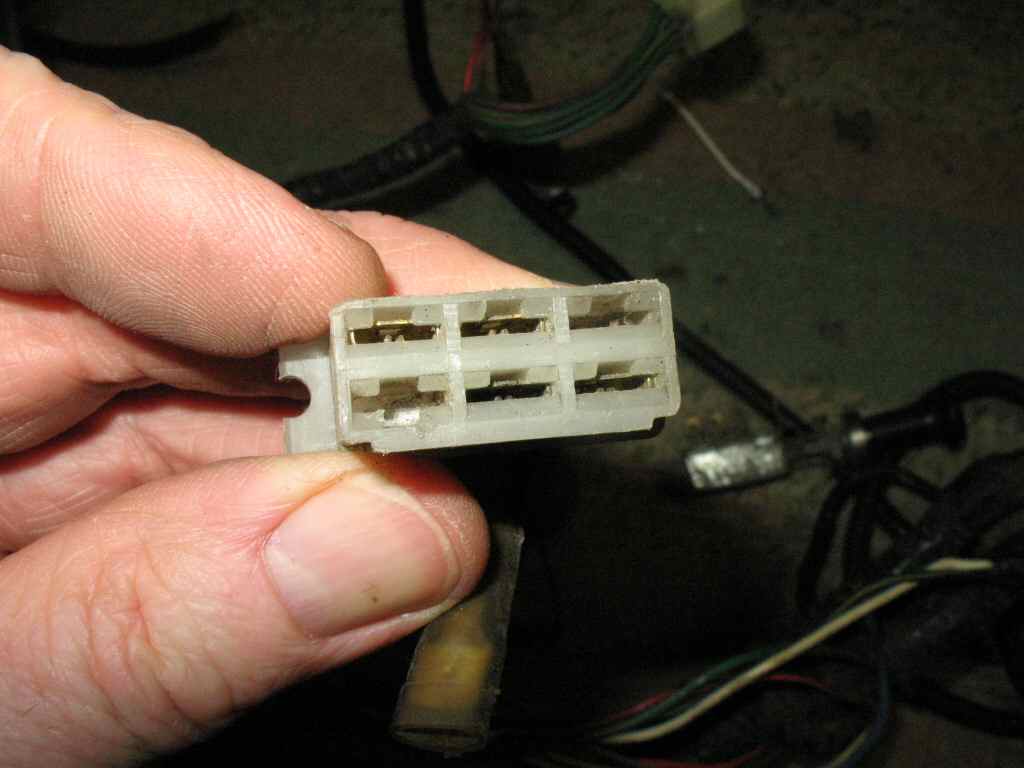

Part # F6P2.8 Qty.
1 $3.00 This is the Emissions Computer receptacle on the
harness. Comes with 6 female 2.8mm terminals.

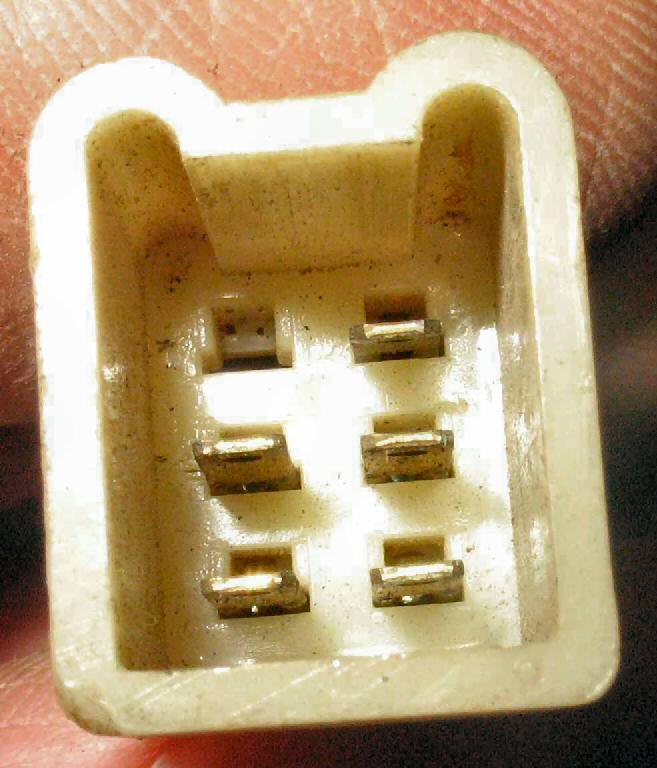

Part # M6P2.8 Qty.
1 $3.25 This is the Emissions Computer Plug. Comes with
6 male 2.8mm terminals.
|
Part# F1T6.3 Qty.
1 $0.35 Female 6.3mm
Terminals for either of the F1P6.3 housings above.
