FJ40/45 Hazard Switches

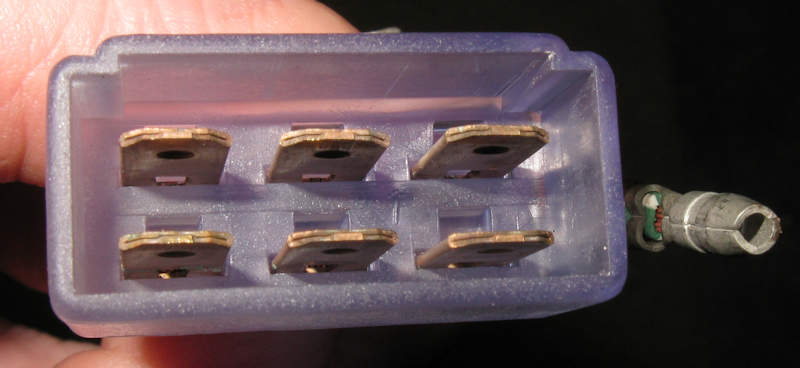

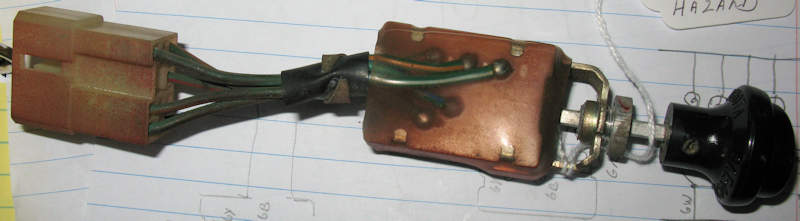

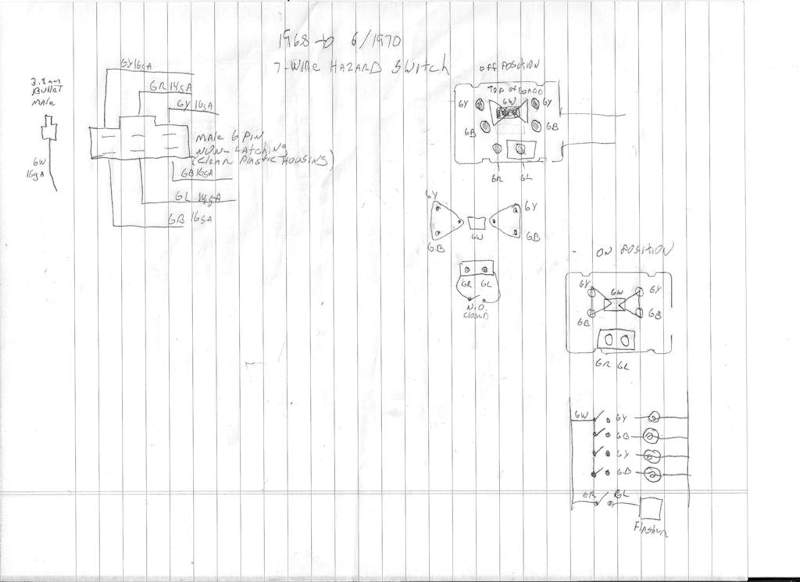

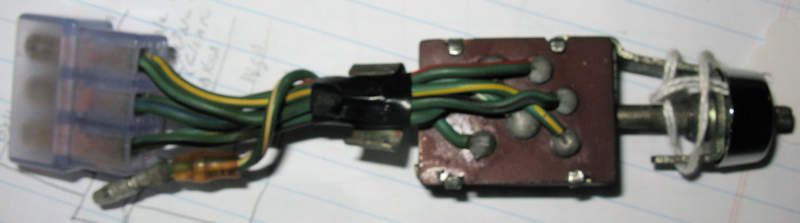

1968 to 6/70 Hazard Switch (Red Knob Hazard Switch)

6 Pin male connector all used + 1 male bullet connector

______________________________________________________________________________________________________

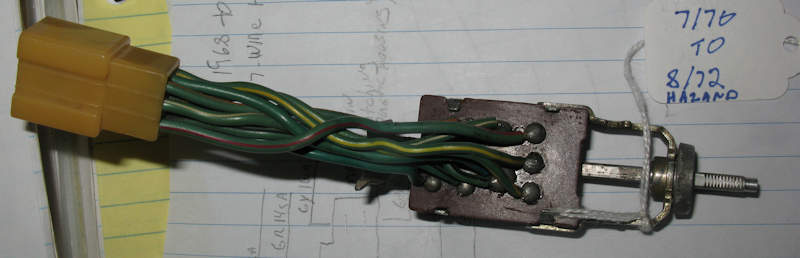

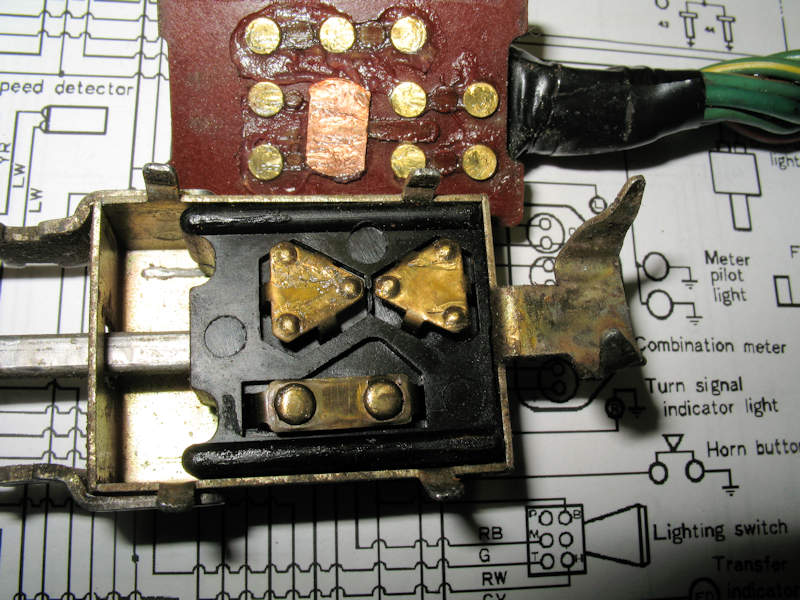

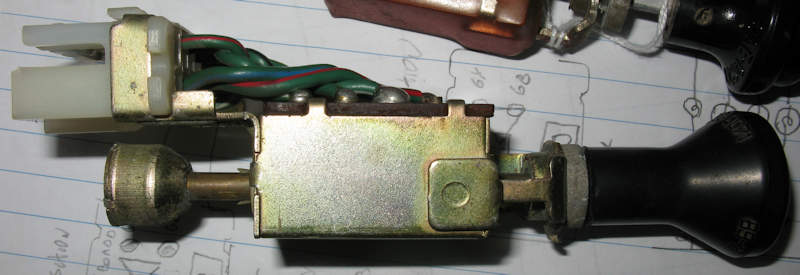

7/70 to 8/1972 Hazard Switch

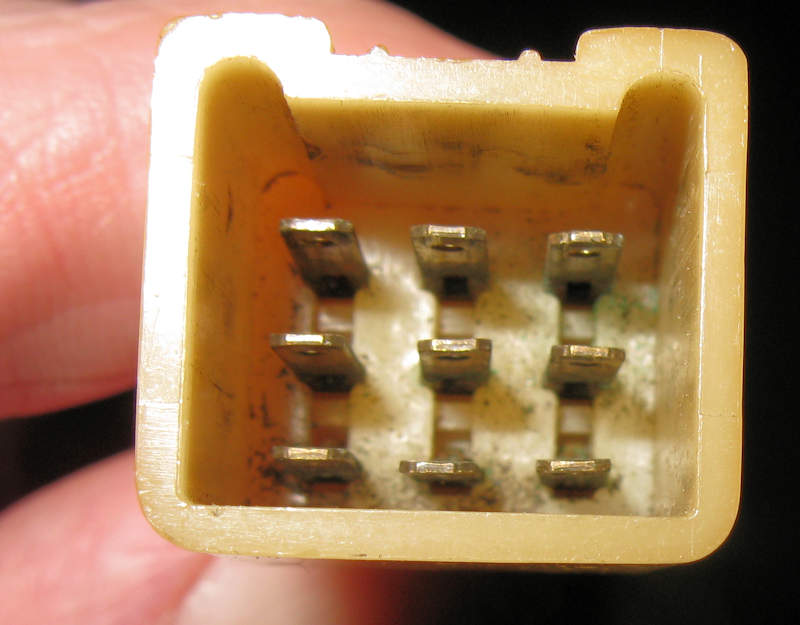

9 pin connector, 9 used (supports two power inputs and turn signal flasher)

______________________________________________________________________________________________________

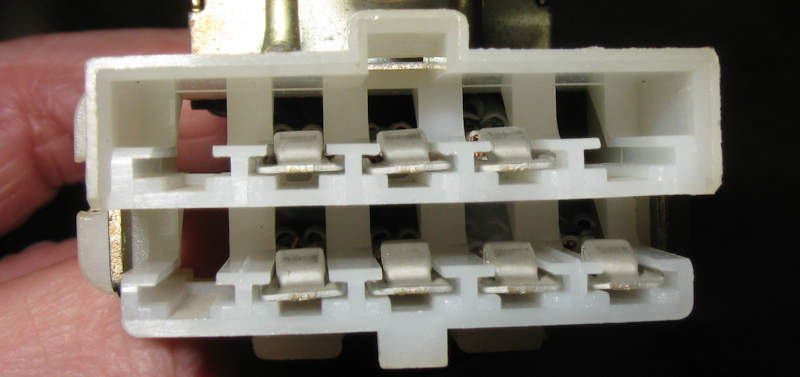

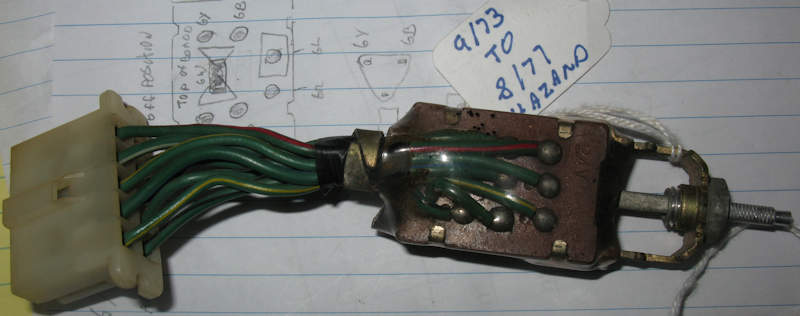

9/1972 to 8/1977 Hazard Switch

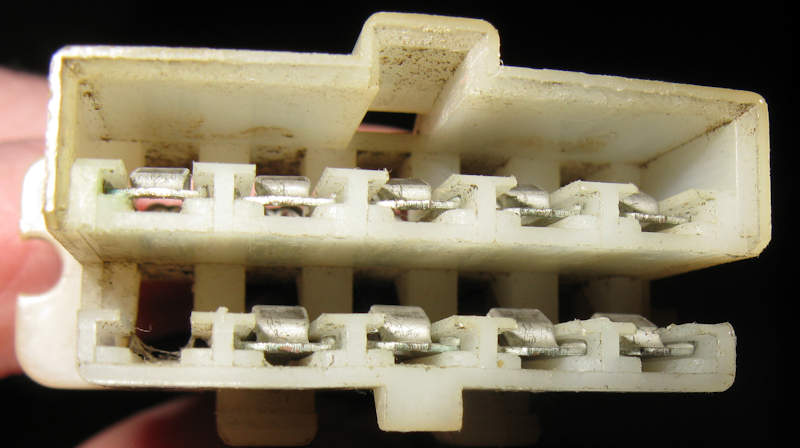

10 Pin Connector, 9 pins used

________________________________________________________________________________________________________

9/1972 to 8/1977 Hazard Switch with lit knob: Mini-Truck and non-USA FJ40/43/45

10 pin connector, 7 pins used

_____________________________________________________________________________________________________

9/1977 to 1984 Hazard Switch

7 Pin Connector, 6 used



Notes:

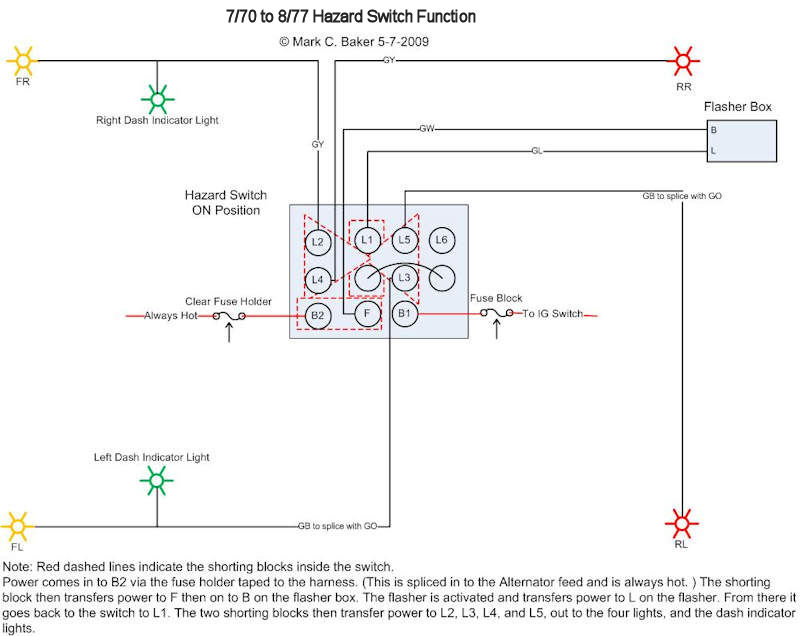

  1. The 7/70 to 8/72 Hazard Switch and the 9/72 to 8/77 Hazard Switch are identical switches internally except for the connectors used on them!

Other Toyota Hazard Switches

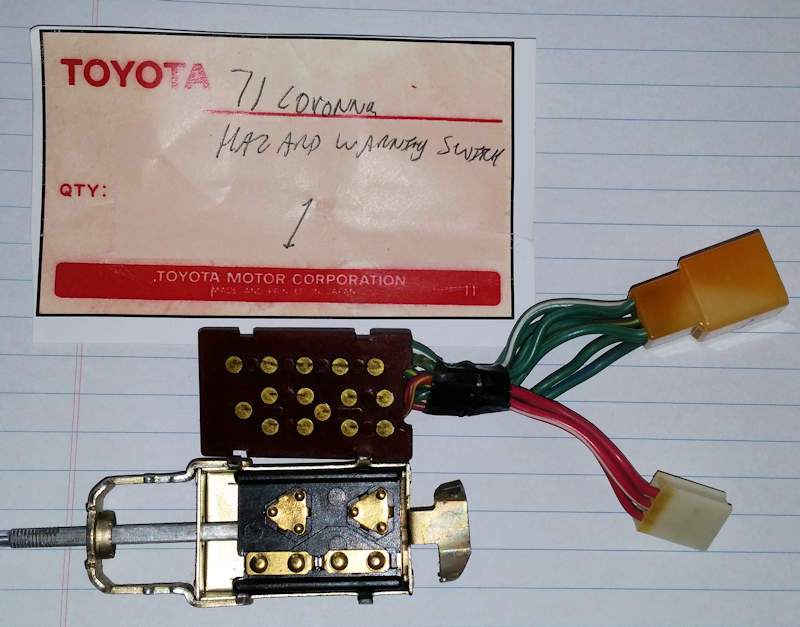

1971 Toyota Corona Hazard Switch with Flasher Input connector

Switch was given to me by Matt from Rising Sun Mechanical
